基于MQTT的Web获取火柴人(骨架数据)的实时数据并播放开发指南

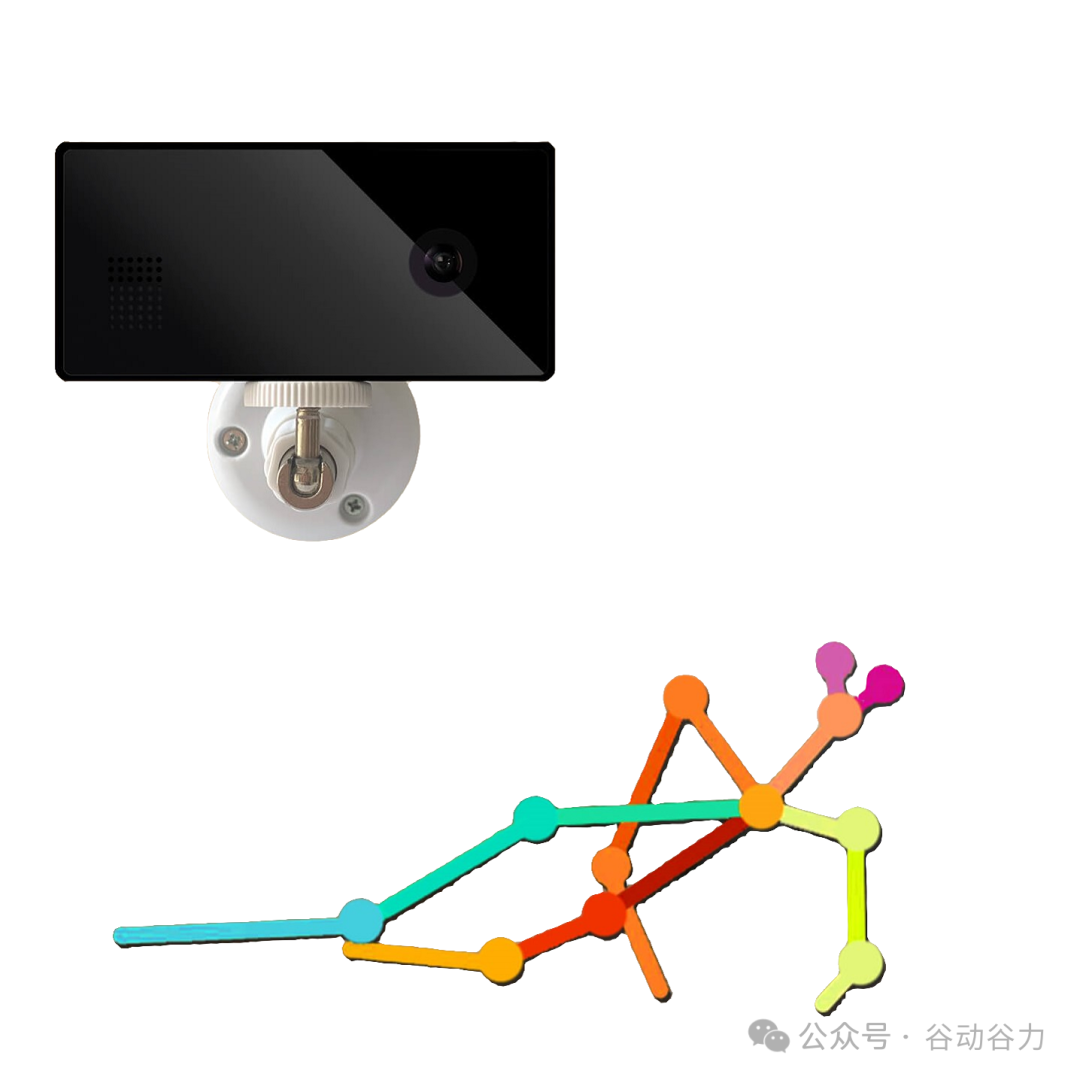

今天我们来探讨一下获取火柴人(骨架数据)的实时数据并播放的方法。由于笔者水平有限,难免会有出入之处,请大家批评指正。
获取火柴人(骨架数据)的实时数据并播放的通常涉及以下步骤:
获取MQTT oaunth token;
获取mqttAccount相关信息;
获取streamtoken;
获取组ID;
建立MQTT连接;
订阅骨架数据流:
接收骨架数据;
解析骨架数据;
渲染骨架数据;
保持连接活跃.
下面我们展开讲解,每个步聚。
获取MQTT oaunth token:
client_id: 联系我们获取
grant_type:client_credentials
scope:camera:write camera:read //请求摄像头的读写权限
client_secret: ********** //联系我们获取
Success-Response 200:
获取mqttAccount信息:

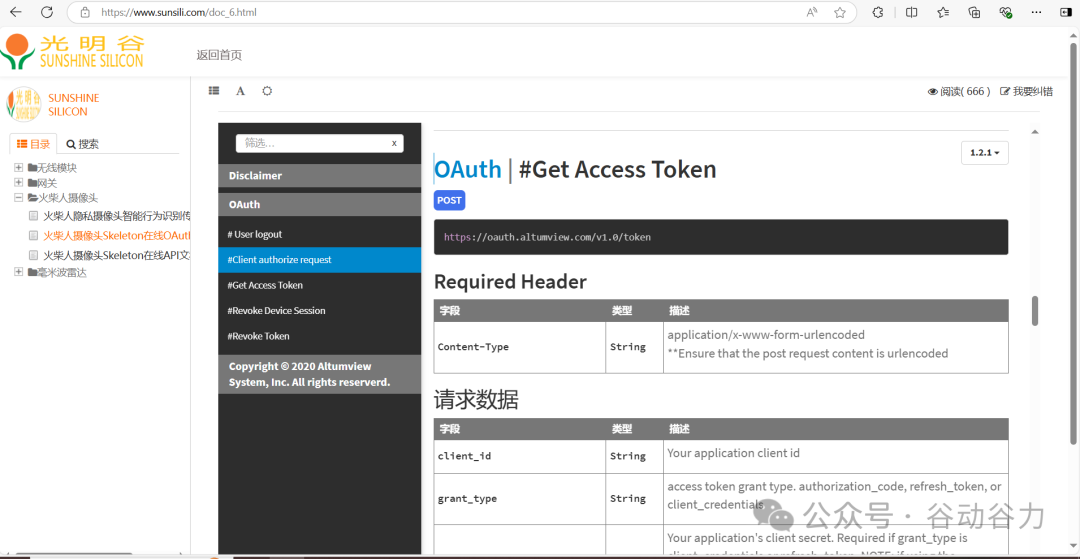

依oauth接口文档

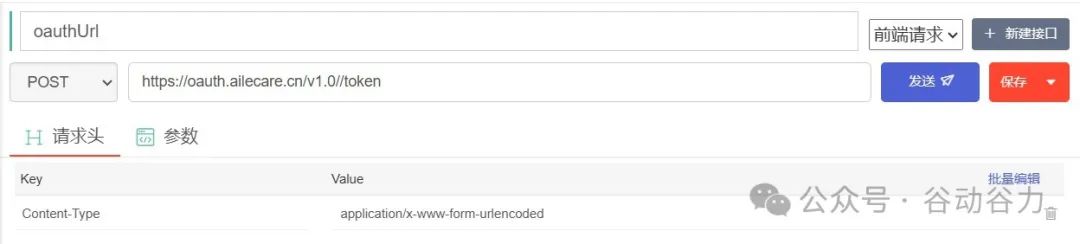

调用接口
https://oauth.altumview.com/v1.0/token
方法:post
请求头:
字段 | 类型 | 描述 |
---|---|---|
Content-Type | String | application/x-www-form-urlencoded |
示例:content-type:application/x-www-form-urlencoded
请求体:
字段 | 类型 | 描述 |
---|---|---|
client_id | String | Your application client id |
grant_type | String | access token grant type. authorization_code, refresh_token, or client_credentials |
client_secret可选 | String | Your application's client secret. Required if grant_type is client_credentials or refresh_token. NOTE: if using the authorization code flow, refresh token will only be returned if client secret is provided. However, refrain from storing the client_secret in public apps where the code can be exposed. |
scope可选 | String | Scopes of this request. Default: [user:read]. Options: camera:write person:write alert:write user:write group:write invitation:write room:write camera:read person:read alert:read user:read group:read invitation:read room:read person_info:write |
redirect_uri可选 | String | Required for grant_type of authorization_code. Redirect uri value, previously used when receiving authorization code |
code可选 | String | The authorization code. Required for grant_type of authorization_code. |
code_verifier可选 | String | Required for grant_type of authorization_code. Code verifier for the proivded challenge from GET login endpoint. |
refresh_token可选 | String | Required for grant_type of refresh_token. This is the refresh token retreived from the previous request. NOTE: if using the authorization code flow, refresh token will only be returned if client secret is provided. |
state可选 | String | Application state, which will return the same value in the same field during return |
device_desctiption可选 | String | Desciption of the device making the request |

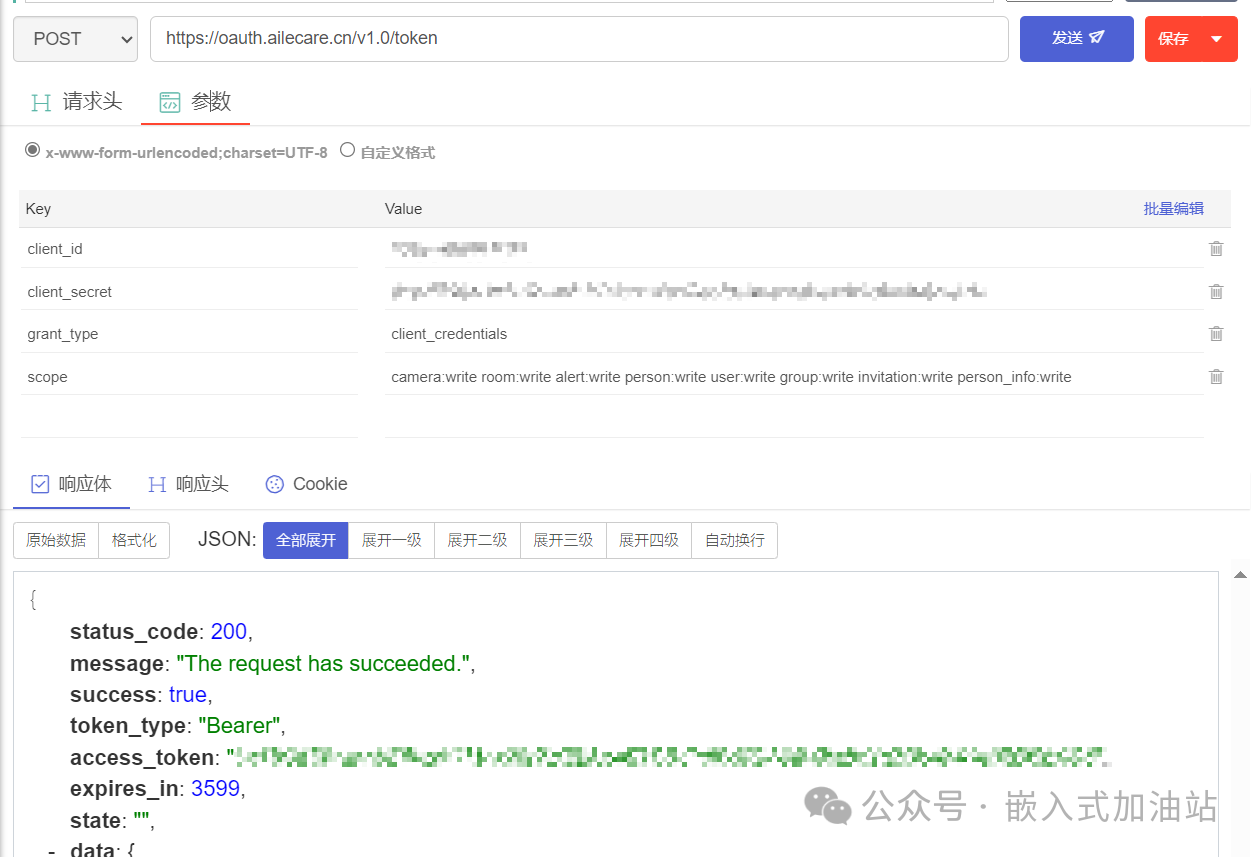

必填项:
非必填项我们也填上,因为我们的grant_type是 client_credentials,所以我们client_secret也需要填上,稍后用到
响应
如何返回200,恭喜你,第一步成功了
请求成功(200)
字段 | 类型 | 描述 |
---|---|---|
status_code | Number | HTTP response code. |
success | Boolean | The status of the operation. |
message | String | The message of the operation. |
token_type | String | token type; default is "bearer" |
access_token | String | authrization code for obtain access token. |
refresh_token可选 | String | Refresh token is not included if using the client credential grant, or if client_secret is not provided in the authorization code flow |
data | Object | The data of the operation. |
is_group_owner | String | Is this user a group owner |
expires_in | Number | the token expiration time in seconds |
state | Number | The state from the request |
HTTP/1.1 200 OK{ "status_code": 200, "message": "The request has succeeded.", "success": true, "token_type": "bearer", "access_token": "12346e3babcd21c1bef3f2f12342d64087a3abcd", "refresh_token": "cfab8df1234380abcd378123412aabcdd2c41234", "expires_in": 3600, "state": "", "data": { "is_group_owner": true, "email": "de@sunsili.com", "user_id": 123 }}
上面有一个重要东西,就是
access_token
也就是我们费尽心思,写接口要获取的东西,有了它才进行下一步
如果请求失败呢,请依如下说明,排除
请求失败(4xx)
名称 | 类型 | 描述 |
---|---|---|
InvalidRequestFieldError | The parameter is provided in invalid format. | |
error_code | Number | The error response code. |
message | String | The message of the operation. |
success | Boolean | The status of the operation. |
status_code | Number | HTTP response code. |
FeatureNotSupportedError | This feature is not supported on this Camera. |
示例:
HTTP/1.1 400 Bad Request
{
"status_code": 400,
"error_code": 6,
"message": "Invalid neccessary fields'",
"success": false
}
获取MQTT用户名、密码和WSS URL。注意,MQTT会话有时间限制,需要定期更新。

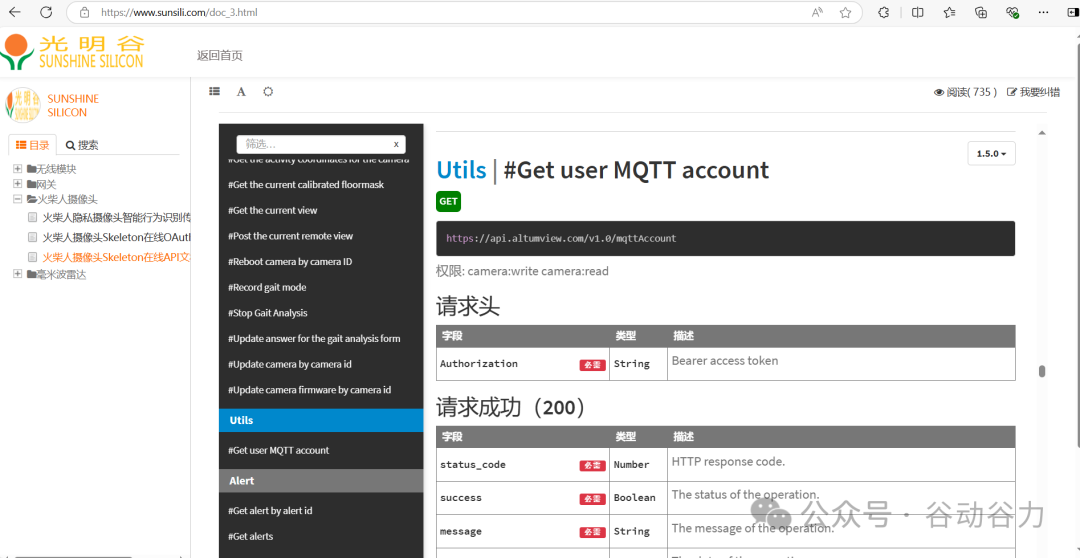

依接口文档

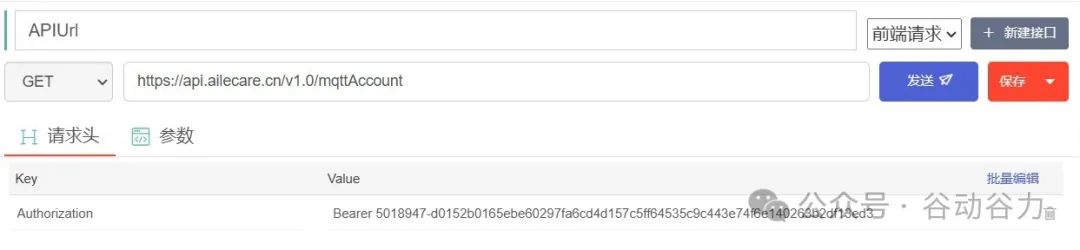

调用接口:
https://api.altumview.com/v1.0/mqttAccount
示例如下:
此接口需要权限: camera:write camera:read,上一个步一定申请这个权限。
请求头
字段 | 类型 | 描述 |
---|---|---|
Authorization必需 | String | Bearer access token |
请求成功返回示例Success-Response 200:
如果返回码为200,恭喜你又成功了一步
请求成功(200)
字段 | 类型 | 描述 |
---|---|---|
status_code必需 | Number | HTTP response code. |
success必需 | Boolean | The status of the operation. |
message必需 | String | The message of the operation. |
data必需 | Object | The data of the operation. |
wss_url必需 | String | The WSS URL. |
mqtt_account必需 | Object | The MQTT account object result. |
username必需 | String | The MQTT username connect to MQTT server |
passcode必需 | String | The MQTT passcode connect to MQTT server |
expires_at必需 | Number | The MQTT account expires epoch time in second |
legacy_subscribe_topics必需 | String[] | The legacy MQTT subscribe topics that are allowed for the account, this will be removed in the future |
subscribe_topics必需 | String[] | The MQTT subscribe topics that are allowed for the account, not in use yet |
legacy_publish_topics必需 | String[] | The legacy MQTT publish topics that are allowed for the account, this will be removed in the future |
publish_topics必需 | String[] | The MQTT publish topics that are allowed for the account, not in use yet |
HTTP/1.1 200 OK { "data":{ "mqtt_account":{ "username": "someusername", "passcode": "somepasscode", "expires_at": 1594432207, "legacy_subscribe_topics": [ "mobileClient/43A726FEE257AAAA/#", "mobileClient/200776FFFF70E05F/#", "mobileClient/2B9FBBBBDD6DAB73/#", ], "subscribe_topics": [mobileClient/160/#], "legacy_publish_topics": [ "mobile/43A726FEE2576342/#", "mobile/200776214270E05F/#", }, "publish_topics": ["mobile/160/#"] }, "wss_url": "wss://beijing.altumview.com:8084/mqtt" }, "message":"The request has succeeded.", "success":true, "status_code":200 }

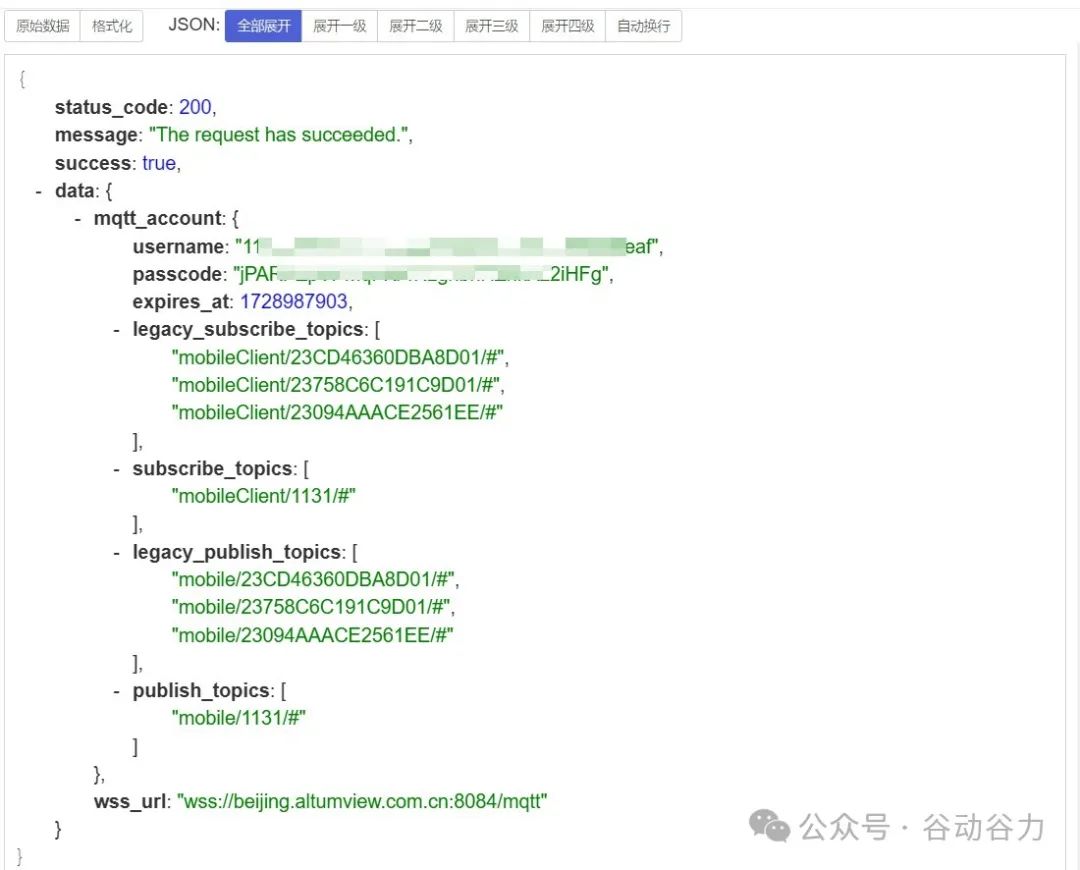

此接口返回数据会告诉你:
MQTT用户名、密码和WSS URL, 可以订阅的主题等信息
拿到上面信息,我们来测试一下MQTT数据流
测试MQTT数据流

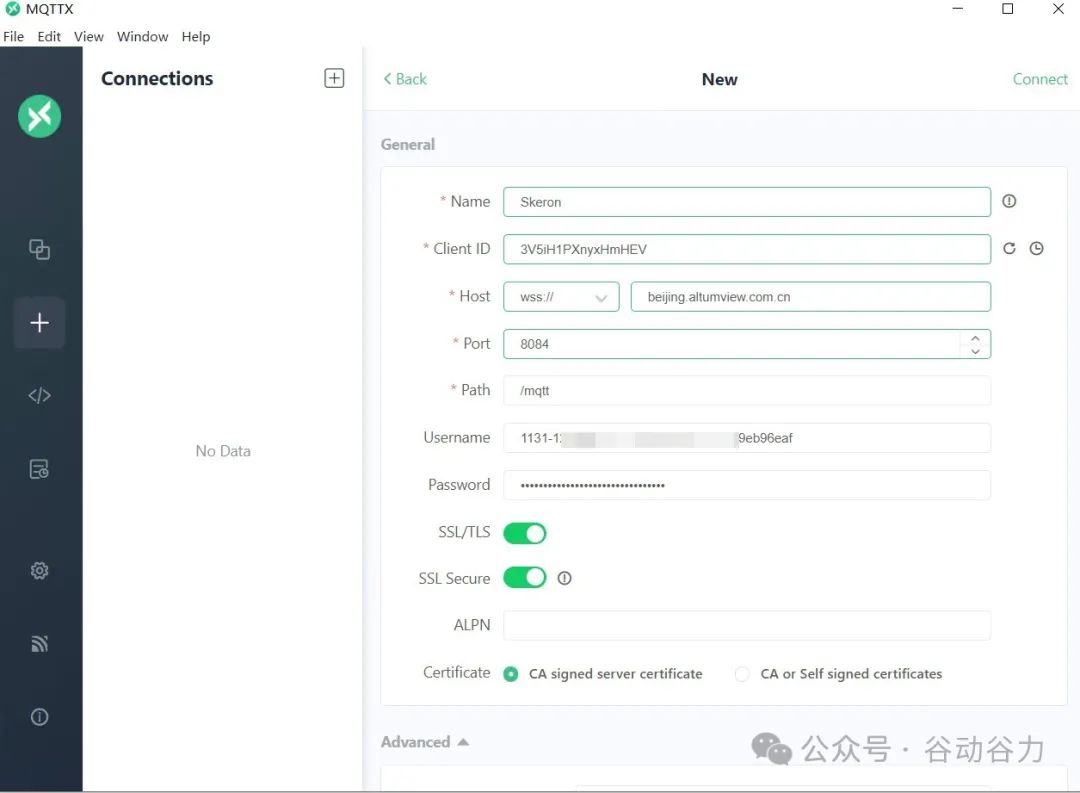

首先建立MQTT连接
要用上面接口获取的MQTT用户名、密码和WSS URL

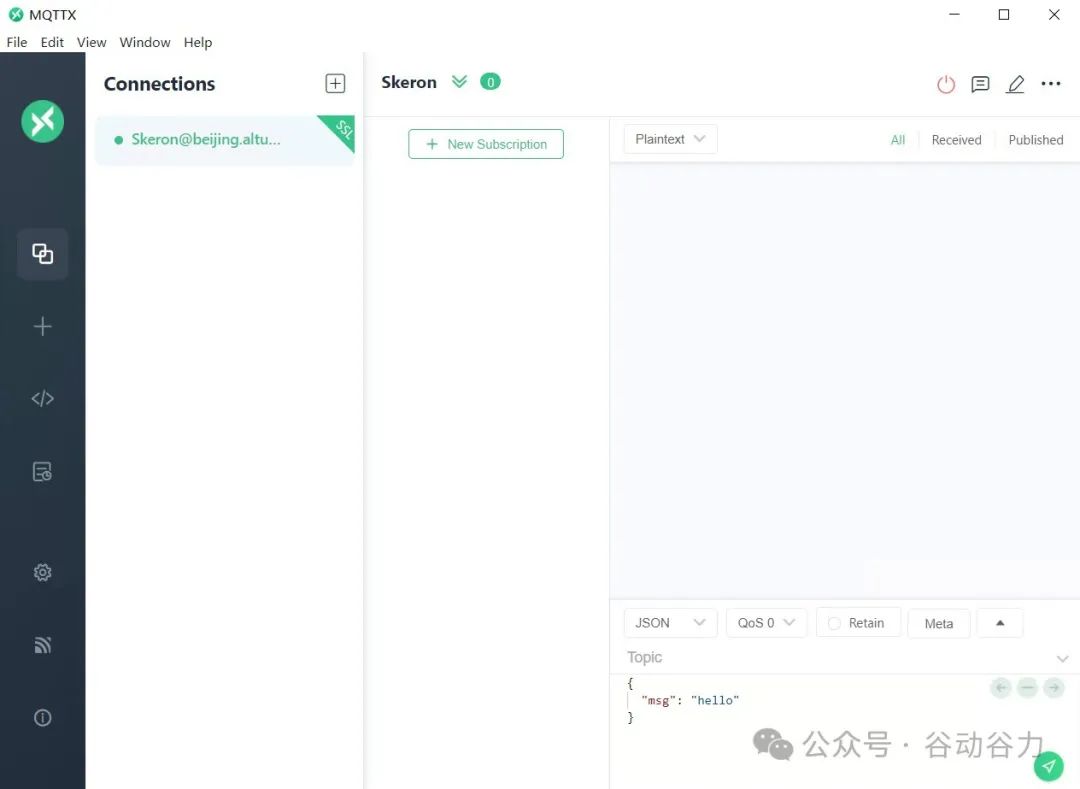

我测试用的MQTTX windows客户端(可联系我们获取),其他平台测试的客户端(需要的朋友联系我们获取帮助)

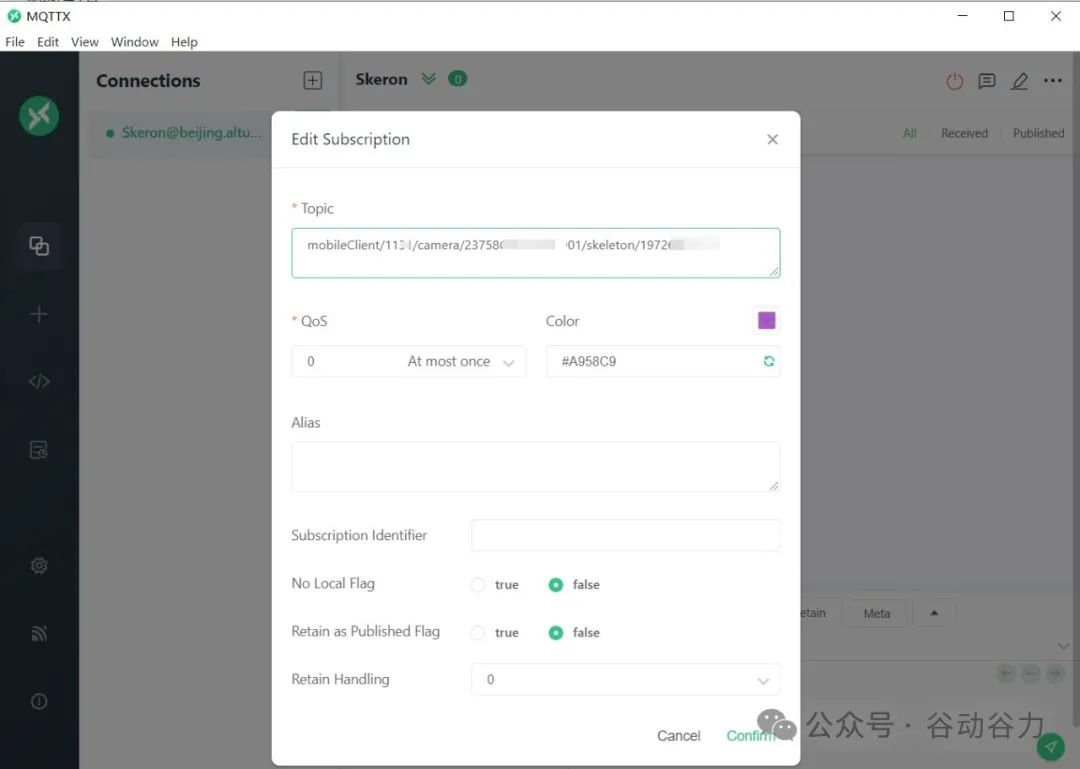

然后订阅主题
使用流令牌订阅MQTT主题,以接收骨架数据。主题格式为
mobileClient/${groupId}/camera/${serialNumber}/skeleton/${streamToken}

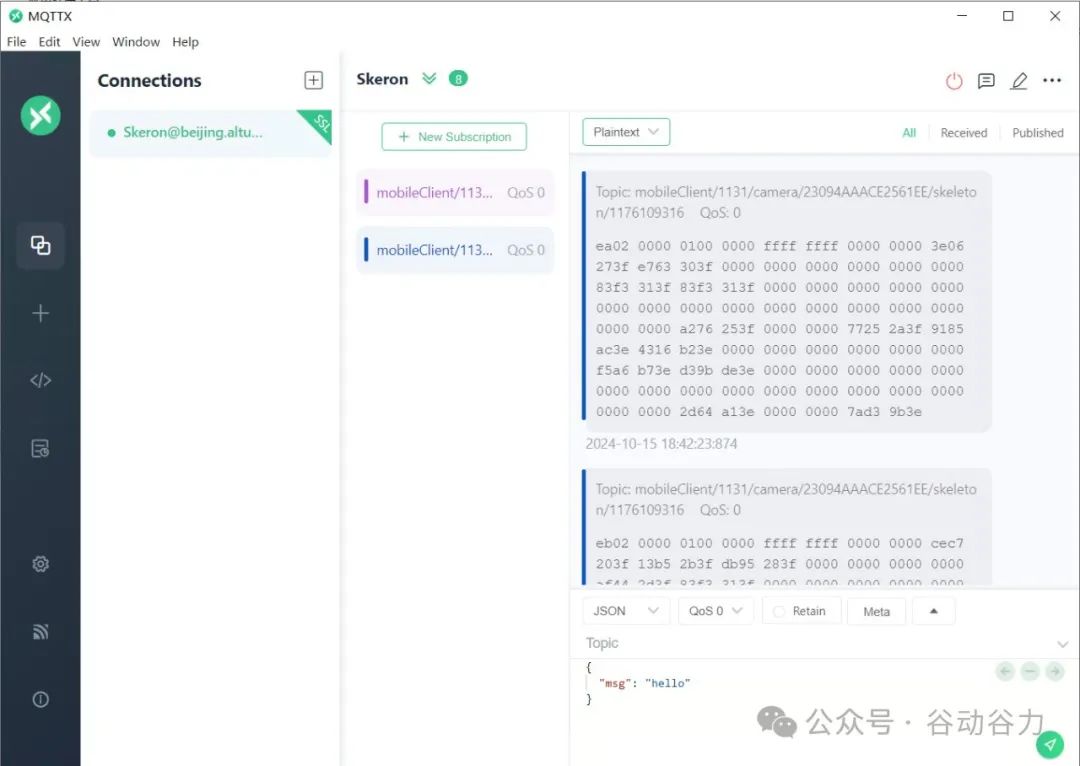

火柴人检测到有人时,才推送火柴人数据到MQTT
<html> <title>Skeleton Stream Demo</title> <script src="https://docs.altumview.com/resources/js_libs/jquery.min.js"></script> <script src="https://docs.altumview.com/resources/js_libs/mqttws31.min.js" type="text/javascript"></script> <script src="https://docs.altumview.com/resources/js_libs/polyfill.min.js"></script> <script type="text/javascript" language="javascript"> /***************************************************************************************** * You must replace parameters with your own. Refer to the FAQ for more detail on how to configure them: * https://docs.altumview.com/FAQ.pdf * For demo, these settings are configured to an AltumView account on the Canadian server. * If you do not see any skeleton rendering, the sensor is no longer available. * * Last updated: March 18, 2022 by Andrew A. ******************************************************************************************/ const oauthUrl = "https://oauth.ailecare.cn/v1.0"; const apiUrl = "https://api.ailecare.cn/v1.0"; const mqttUrl = "beijing.altumview.com.cn"; const clientId = "HkJMDXEe6G1tJ66s"; const clientSecret = "zFAl2CSkB6hGdzcIwfMMRbFErh8ValC7CS9ISsbnYZyH6xZdXbltoKrVAD7lQ4Xm"; const serialNumber = "23E94A5DACD323EE"; // Use the mobile app to get the serial number const streamToken = "701406606"; // Call GET '/cameras/:id/streamtoken' endpoint to get Stream Token const groupId = 72; // Call GET '/info' endpoint to get Group ID const getCredentials = () => { $.ajax({ "type": "POST", "url": `${oauthUrl}/token`, "headers": { "Content-Type": "application/x-www-form-urlencoded" }, "data": { "client_id": clientId, "client_secret": clientSecret, "grant_type": "client_credentials", "scope": "camera:write camera:read", }, "success": function(response) { token = response.access_token; console.log("token", token) var url = `${apiUrl}/mqttAccount`; var xhr = new XMLHttpRequest(); xhr.open("GET", url); xhr.setRequestHeader("Authorization", "Bearer " + token); xhr.onreadystatechange = function() { if (xhr.readyState === 4) { console.log(xhr.responseText) const response = JSON.parse(xhr.responseText); username = response.data.mqtt_account.username; password = response.data.mqtt_account.passcode; const canvasWidth = 960; const canvasHeight = 540; const onFailure = () => { const reconnectTimeout = 2000; console.log("Connect failed. Trying to reconnect after 2 sec"); setTimeout(MQTTConnect, reconnectTimeout); } const onMessageArrived = (message) => { const byteList = message.payloadBytes const frameNum = parseStringInt32(byteList, 0) const numPeople = parseStringInt32(byteList, 4) const people = [] for (let i = 0; i < numPeople; i++) { const pos = 8 + 152 * i; const personId = parseStringInt32(byteList, pos); const person = {}; for (let j = 0; j < 18; j++) { const x = parseStringFloat(byteList, pos + 8 + j * 4); const y = parseStringFloat(byteList, pos + 80 + j * 4); if (x && y) person[j] = new Point(x, y); } person.name = personId; people.push(person); } const canvas = document.getElementById('canvas'); if (canvas && people) { const ctx = canvas.getContext('2d'); ctx.clearRect(0, 0, canvasWidth, canvasHeight); people.forEach(person => { drawSkeleton(ctx, 4, person); }) } } const drawSkeleton = (ctx, lineWidth, points) => { ctx.lineWidth = lineWidth; ctx.lineCap = 'round'; let minX = 1; let minY = 1; pointPairs.forEach(pair => { const startPoint = points[pair.start]; const endPoint = points[pair.end]; if (startPoint !== undefined && endPoint !== undefined) { if (endPoint.x < minX) minX = endPoint.x; if (endPoint.y < minY) minY = endPoint.y; ctx.strokeStyle = pair.color; drawLine(ctx, startPoint.x * canvasWidth, startPoint.y * canvasHeight, endPoint.x * canvasWidth, endPoint.y * canvasHeight); } }) } function Point(x, y) { this.x = x; this.y = y; } const drawLine = (ctx, x0, y0, x1, y1) => { ctx.beginPath(); ctx.moveTo(x0, y0); ctx.lineTo(x1, y1); ctx.stroke(); } const pointPairs = [ { start: 0, end: 1, color: 'pink' }, { start: 1, end: 2, color: 'orange' }, { start: 2, end: 3, color: 'yellow' }, { start: 3, end: 4, color: 'lightYellow' }, { start: 1, end: 5, color: 'darkSalmon' }, { start: 5, end: 6, color: 'salmon' }, { start: 6, end: 7, color: 'lightSalmon' }, { start: 1, end: 8, color: 'darkTurquoise' }, { start: 8, end: 9, color: 'turquoise' }, { start: 9, end: 10, color: 'paleTurquoise' }, { start: 1, end: 11, color: 'darkRed' }, { start: 11, end: 12, color: 'red' }, { start: 12, end: 13, color: 'orange' }, { start: 0, end: 14, color: 'purple' }, { start: 14, end: 16, color: 'purple' }, { start: 0, end: 15, color: 'violet' }, { start: 15, end: 17, color: 'violet' } ] const parseStringInt32 = (stringData, startIndex) => { const t = stringData.slice(startIndex, startIndex + 4); return new DataView(t.buffer).getInt32(0, true); } const parseStringFloat = (stringData, startIndex) => { const t = stringData.slice(startIndex, startIndex + 4); return new DataView(t.buffer).getFloat32(0, true); } const onConnect = () => { console.log('connect success'); var soptions = { qos: 0 }; // Next, subscribe to this topic with the aforementioned stream token appended const subscribeTopic = `mobileClient/${groupId}/camera/${serialNumber}/skeleton/${streamToken}`; mqtt.subscribe(subscribeTopic, soptions); console.log(`subscribe to ${subscribeTopic}`); // Finally, publish the same stream token as a message to the camera in order to start streaming. You must publish this message every 45 seconds to keep streaming going. const publishTopic = `mobile/${groupId}/camera/${serialNumber}/token/mobileStreamToken`; message = new Paho.MQTT.Message(streamToken); message.destinationName = publishTopic; message.qos = 2; message.retained = false; mqtt.send(message); console.log("Connected"); const reconnectTimeout = 44000; setTimeout(MQTTConnect, reconnectTimeout); } const MQTTConnect = async (id) => { const port = 8084; console.log(`connecting to ${mqttUrl}:${port}`); mqtt = new Paho.MQTT.Client(mqttUrl, port, username); const options = { timeout: 3, onSuccess: onConnect, onFailure: onFailure, useSSL: true, userName: username, password: password }; mqtt.onMessageArrived = onMessageArrived; mqtt.connect(options); } MQTTConnect(1); } }; xhr.send(); }, "error": function(errorThrown) { alert(JSON.stringify(errorThrown.error())); } }); }</script> <body> <p>This is a demo of the Skeleton Streaming</p> <canvas id="canvas" width="960" height="540" style="background-color: black; transform: scaleX(-1)"></canvas> <script> getCredentials();</script> </body></html>
代码概述
HTML结构:页面包含一个<canvas>元素,用于绘制动画。
JavaScript逻辑:
引入了jQuery、MQTT WebSocket客户端库和Polyfill库。
获取URL参数,如客户名称和应用类型。
动态设置画布尺寸以适应不同屏幕。
使用Ajax请求获取访问令牌和MQTT账户信息。
连接到MQTT服务器,并订阅特定主题以接收动画数据。
接收到数据后,解析并在画布上绘制火柴人动画。
还包含了一些辅助函数,如绘制线条、解析数据等。
详细解析
HTML头部:
引入了必要的JavaScript库。
设置了页面标题。
HTML主体:
一个<div>容器包裹了一个<canvas>元素,用于显示动画。
JavaScript代码:
drawSkeleton:绘制火柴人的骨架。
Point:表示点的类。
drawLine:绘制线条。
parseStringInt32和parseStringFloat:解析二进制数据。
解析接收到的数据,提取出火柴人的位置信息。
在画布上绘制火柴人动画。
使用获取的用户名和密码连接到MQTT服务器。
订阅特定主题以接收火柴人动画数据。
定期发布消息以保持连接。
参数获取:从URL中获取客户名称和应用类型。
画布尺寸设置:根据窗口大小动态调整画布尺寸。
获取凭证:通过Ajax请求获取OAuth令牌和MQTT账户信息。
MQTT连接:
数据处理:
辅助函数:
错误处理
请注意,根据文档说明,您需要每15分钟获取一次流令牌以保持数据流的活跃状态。
总结

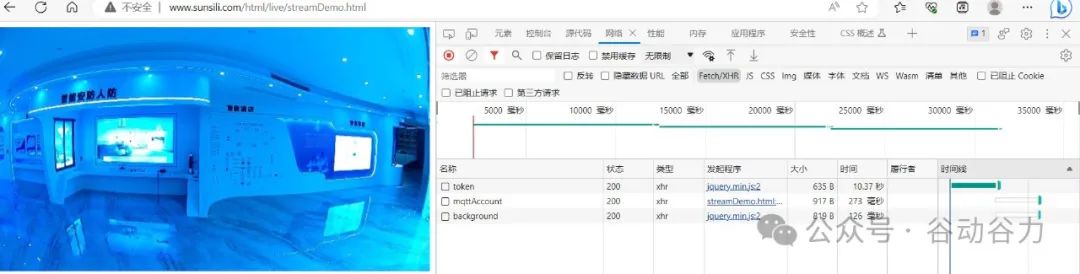

这段代码是一个完整的在线直播演示页面,展示了如何使用MQTT协议和Web技术(HTML、JavaScript)来实现实时动画的展示。它涵盖了从前端界面设计,后端数据处理的完整流程,包括网络通信、数据解析和图形绘制等关键技术。
这个过程需要您的应用程序能够处理网络请求、WebSocket连接、二进制数据处理和图形渲染。您可能需要根据您应用程序的具体技术栈选择合适的库和工具来实现上述功能。
如果您遇到任何问题,可以参考我们API文档或联系技术支持获取帮助。
了解火柴人摄像头,请参考:【推荐好物】火柴人隐私摄像头 AI智能行为检测跌倒报警
请注意,这个过程需要您的应用程序能够处理网络请求、WebSocket连接、二进制数据处理和图形渲染。您可能需要根据您应用程序的具体技术栈选择合适的库和工具来实现上述功能。如果您遇到任何问题,可以参考我们API文档或联系技术支持获取帮助。
API参考文档
火柴人摄像头Skeleton在线OAuthAPI文档_SUNSHINE SILICON (http://www.sunsili.com/doc_6.html)
火柴人摄像头Skeleton在线API文档_SUNSHINE SILICON (http://www.sunsili.com/doc_3.html)
开源地址
https://gitee.com/lojam/mqtt-web-stream-demo/tree/master/streamDemo
